PART NUMBERS ALUMINIUM FINISH AU-WS4-2 **4 INCH DROP (Includes 1 x 50mm Ball) AU-WS6-2 **6 INCH DROP (Includes 1 x 50mm Ball) AU-WS8-2 **8 INCH DROP (Includes 1 x 50mm Ball) BLACK CERAKOTE FINISH AU-WS4-2B **4 INCH DROP (Includes 1 x 50mm Ball) AU-WS6-2B **6 INCH DROP (Includes 1 x 50mm Ball) AU-WS8-2B **8 INCH DROP (Includes 1 x 50mm Ball) The Weigh Safe Drop Hitch is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. Before this ball mount, gauging your trailer’s tongue weight was a hassle. You had to rely on inefficient bathroom scales, make a trip to the weigh station, or purchase a separate tongue weight scale. But with the Weigh Safe’s built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.
Features: Ball mount with included hitch balls lets you hook up your trailer to your tow vehicle Shank slides into hitch receiver Ball provides connection point for trailer coupler Tongue weight scale built into the ball mount platform helps you balance your trailer Promotes safe towing – lets you know if your load needs to be adjusted before you tow Simple operation – automatically provides a measurement every time you couple your trailer Efficient and hassle-free – eliminates the need for separate or commercial scales Stowable design lets you store the ball and mounting platform underneath your vehicle Remove dual locking pins holding ball mount platform in place on shank Place platform on backside of shank, facing towards the vehicle Reinsert dual locking pins to secure ball mount platform for travel Adjustable height lets you tow trailers of different heights with the same vehicle Slide ball mount platform up or down shank and secure in place with included dual locking pins 2 Keys are included 50MM BALL INCLUDED 6061 T6 billet aluminium shank and mounting platform provide superior strength and durability Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight Rustproof for a clean finish that stands the test of time Stainless steel hitch balls are corrosion resistant Hitch pin and clip or hitch lock sold separately SAE J684 certified and VESC Regulations V-5 compliant ADR APPROVED Made in the USA *** GAUGE IN KILOGRAMS *** ** AVAILABLE IN 4, 6 AND 8 INCH DROP FOR 2 INCH RECEIVER **
Contact Us For Details Of Your Local Stockist

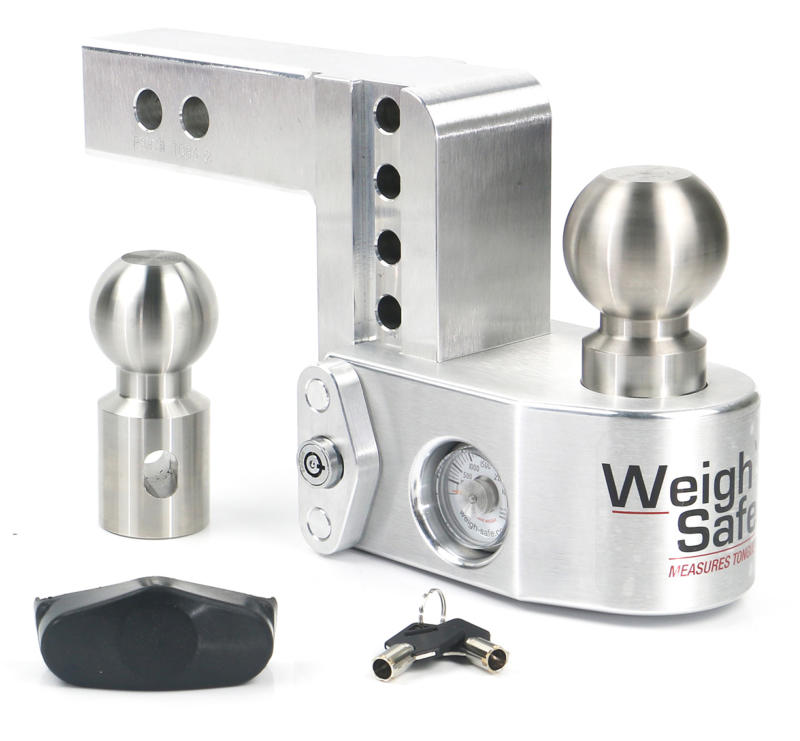

4” Drop with 2” Shank
ALUMINIUM FINISH - Part # AU-WS4-2
Click image to enlarge
Price (AUD): RRP $750.00 Delivery (AUD): Freight Charges Apply (within Australia) $25.00 Flat Rate

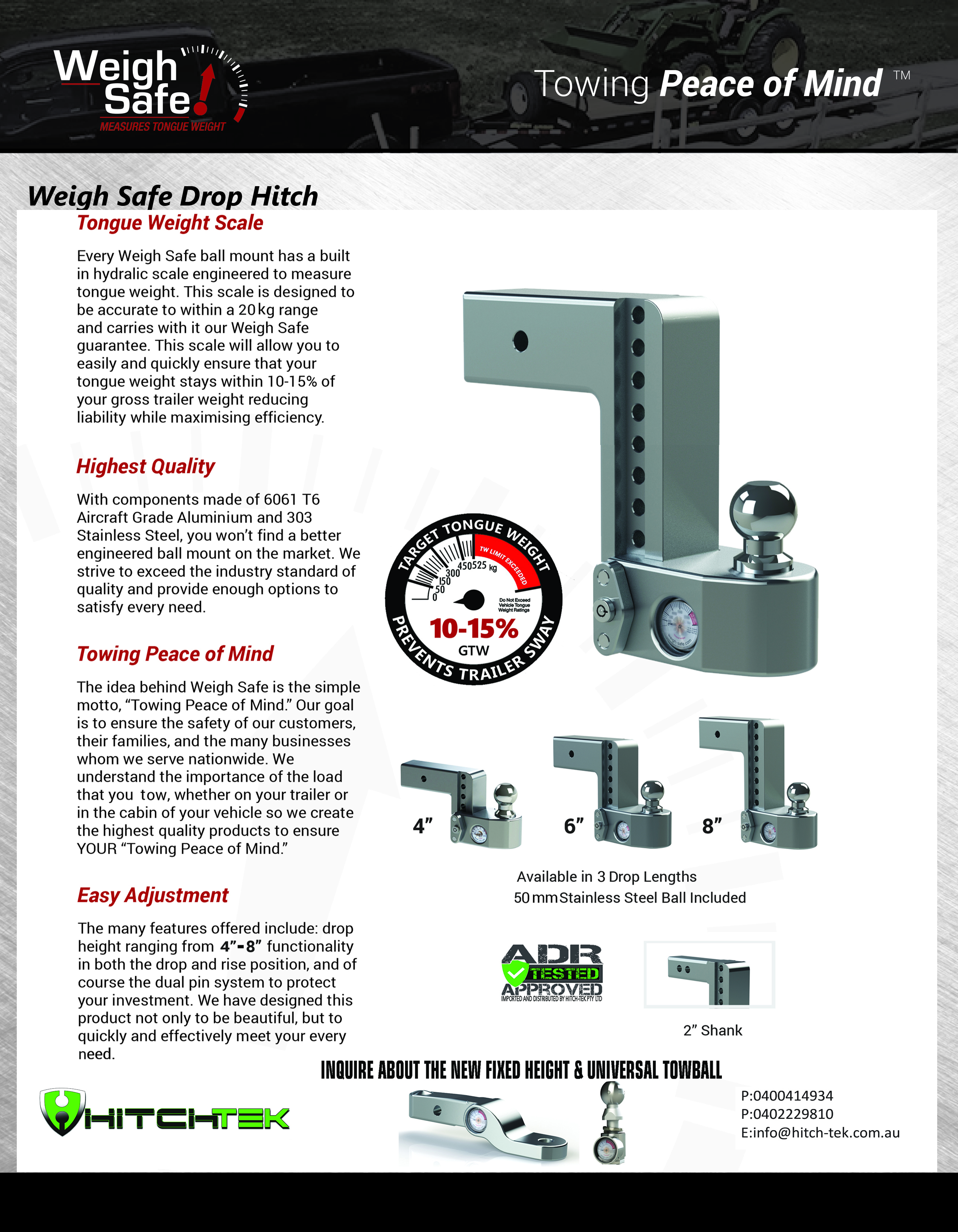

Download Brochure  jpg, 3.62mb Download Instructions  pdf, 16.2mb OUTSIDE AUSTRALIA CLICK HERE
(Australia Only)
4” Drop with 2” Shank
BLACK CERAKOTE FINISH - Part # AU-WS4-2B
Click image to enlarge
Price (AUD): RRP $800.00 Delivery (AUD): Freight Charges Apply (within Australia) $25.00 Flat Rate
Download Brochure  pdf, 4.67mb Download Instructions  pdf, 16.2mb OUTSIDE AUSTRALIA CLICK HERE
(Australia Only)

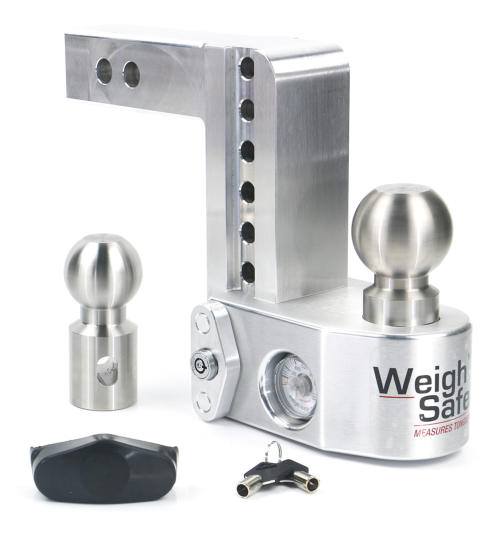

6” Drop with 2” Shank
ALUMINIUM FINISH - Part # AU-WS6-2
Click image to enlarge
Price (AUD): RRP $800.00 Delivery (AUD): Freight Charges Apply (within Australia) $25.00 Flat Rate
(Australia Only)
Download Instructions  pdf, 16.2mb OUTSIDE AUSTRALIA CLICK HERE
6” Drop with 2” Shank
BLACK CERAKOTE FINISH - Part # AU-WS6-2B
Click image to enlarge
Price (AUD): RRP $850.00 Delivery (AUD): Freight Charges Apply (within Australia) $25.00 Flat Rate
Download Instructions  pdf, 16.2mb OUTSIDE AUSTRALIA CLICK HERE
(Australia Only)

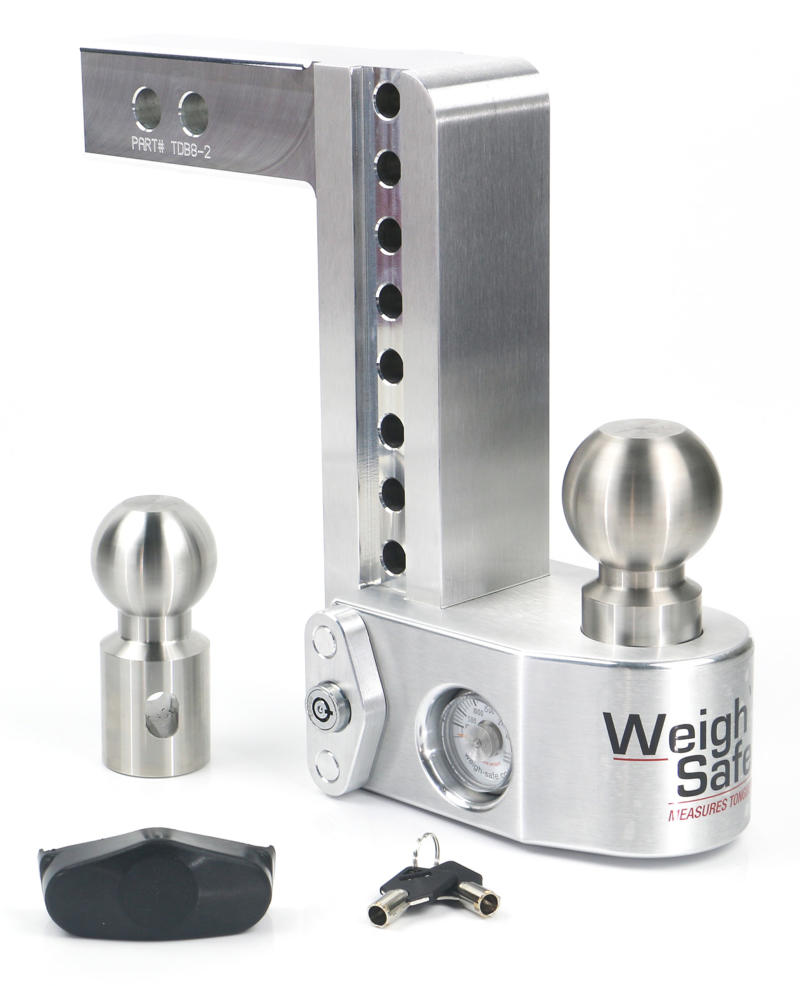

8” Drop with 2” Shank
ALUMINIUM FINISH - Part # AU-WS8-2
Click image to enlarge
Price (AUD): RRP $850.00 Delivery (AUD): Freight Charges Apply (within Australia) $25.00 Flat Rate
(Australia Only)
8” Drop with 2” Shank
BLACK CERAKOTE FINISH - Part # AU-WS8-2B
Click image to enlarge
Price (AUD): RRP $900.00 Delivery (AUD): Freight Charges Apply (within Australia) $25.00 Flat Rate
(Australia Only)
Download Instructions  pdf, 16.2mb OUTSIDE AUSTRALIA CLICK HERE Download Instructions  pdf, 16.2mb OUTSIDE AUSTRALIA CLICK HERE Weigh Safe Drop Hitch - 4" Drop for 2" Receiver - Black Cerakote Finish Weigh Safe Drop Hitch - 6" Drop for 2" Receiver - Black Cerakote Finish Weigh Safe Drop Hitch - 8" Drop for 2" Receiver - Black Cerakote Finish Weigh Safe Drop Hitch - 4" Drop for 2" Receiver - Aluminium Finish Weigh Safe Drop Hitch - 6" Drop for 2" Receiver - Aluminium Finish Weigh Safe Drop Hitch - 8" Drop for 2" Receiver - Aluminium Finish
ALUMINIUM FINISH The tongue weight scale built in to the ball mount platform helps you balance your trailer Promotes safe towing - lets you know if your load needs to be adjusted before you tow Simple operation - automatically provides a measurement every time you couple your trailer Efficient and hassle-free - eliminates the need for separate or commercial scales 6061 T6 billet aluminium shank and mounting platform provide superior strength and durability Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight Rustproof for a clean finish that stands the test of time Maintenance: Keep your trailer hitch clean and wash regularly with soap and water. Make sure dust lock covers are always secured on all locks. For replacement dust covers, please reach out. Measuring Tongue Weight: You must have your truck and trailer on flat, level ground in order for your tongue weight gauge to read accurately. Being on a slant or grade will change or compromise the gauge accuracy. After loading the trailer coupler onto the tow ball, move the trailer frame back and forth with your foot to reduce friction. The tow ball and trailer coupler must be jounced to reduce friction and get an accurate tongue weight reading. The Weigh Safe Gauge accuracy is +/- 1.35% over the full range of the scale. Hitch Height Setting: For the best towing performance, adjust the height of your hitch to make sure the towed trailer is level to the ground. To accomplish this, use a level (if on level ground) or measure the distance to the ground on the front and rear of the trailer frame and adjust the coupler height in order to make both measurements the same. For tandem “independent” trailer axles, the height of your hitch does affect your tongue weight. If your trailer coupler is too high, the tongue weight increases, and your back axle tyres will receive more weight. If your trailer coupler is too low, your tongue weight will read less and increase the weight on the front axle tyres. Without being level, your tongue weight will not read true, and your tyres will wear faster and unevenly. BLACK CERAKOTE FINISH Cerakote is a Polymer-Ceramic Composite coating that can be applied to metals, plastics, polymers and wood. The unique formulation for Cerakote ceramic coating enhances a number of physical performance properties including abrasion/wear resistance, corrosion resistance, chemical resistance, impact strength, and hardness. Each of these properties is rigorously tested to guarantee that Cerakote products remain at the forefront of the ceramic coatings market. Cerakote ceramic coatings utilise state-of-the-art technology to out-perform any competitive coating in both laboratory settings and real world applications. ** The Cerakote finish is NOT covered under product warranty **
